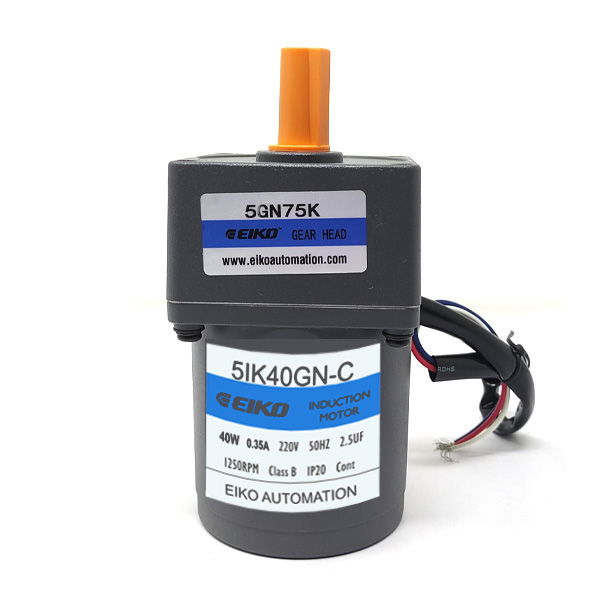

40W AC Induction Motor

• Power & Size: Offers a powerful 40W output within a 90mm × 90mm
• Electrical Specs: Operates on single-phase (100V/220V) or three-phase (220V); capacitor range 5µF–12µF.
• Performance: Provides torque up to 315 mN·m at 1250 RPM (50 Hz).
• Gearhead Integration: Designed for 5GN series gearheads to deliver high torque output.
• Gearbox Ratios: Available in ratios from 1:3 to 1:200 as per requirement.
• Built-in Protection: Integrated thermal safety prevents motor overheating.
